Modle | HES 3.0 | HES 10.0 | |
| Battery Type | Sodium ion (Na+) | Sodium ion (Na+) | |
| Rated energy | 3.36kWh | 9.6kWh | |
Nominal capacity | 70Ah | 200Ah | |
Discharge voltage | 32~64V | 32~64V | |
Charge voltage | 65V | 65V | |
Operating temperature | -40℃ ~ 60℃ | ||
Continuous charge current | 35A | 100A | |
| Peak charge current | 70A | 125A | |
Continuous discharge current | 50A | 100A | |
Peak discharge current | 100A | 125A | |
Rated discharge power | 2kW | 5kW | |
Maximum discharge power | 5kW | 10kW | |
IP protection level | IP31 | ||
Extensibility | Support parallel connection (refer to the user manual） | ||
| DOD | 90% | ||
| Lnstallation method | Wall mounted or floor | ||
Dimensions | 830*460*200mm | 980*460*200mm | |
Weight | |||
65kg | 115kg | ||
Authentication | UN, CE | ||
Communication protocol | CAN2.0 / RS485 | ||
Rated voltage | 48V | ||
Warranty | 5 Year | ||
Cycle life | >5000 | ||

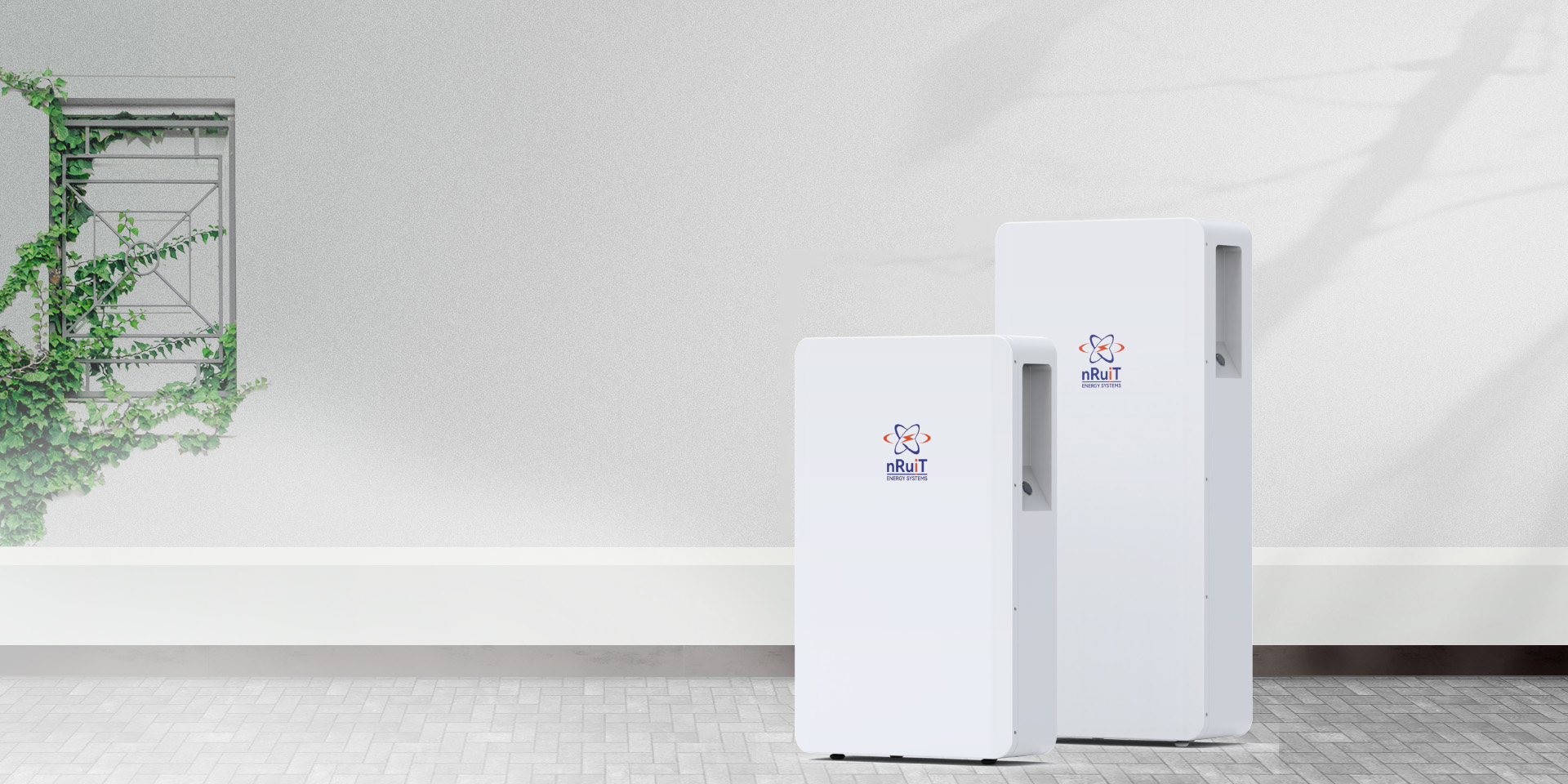

Sodium battery household storage
Certified for safety performance such as UN38.3,CE, IEC62619 etc.
