Modle | Liquid cooling system W-CES EnerC | Liquid cooling system W-CES EnerD | ||
Project | 280Ah | 314Ah | ||
| Configuration | 10*(IP52S*8) | 12*(IP52S*8) | ||
| Rated energy | 3.7MWh | 5.0MWh | ||
Rated voltage | 1331.2VDC | 1331.2VDC | ||
| Voltage range | 1164.8~1497.6VDC | 1164.8~1497.6VDC | ||
0.5P system | ||||
Charge current (0.5P) | Rated | 1400A | Rated | 1878A |
Maximum | 1600A | Maximum | 2065A | |
Charge power (0.5P) | Rated | 1863.68kW | Rated | 2500kW |
Discharge current (0.5P) | Rated | 1400A | Rated | 1878A |
Maximum | 1600A | Maximum | 2065A | |
Discharge power (0.5P) | Rated | 1863.68kW | Rated | 2090kW |
Auxiliary power supply (0.5P) | Voltage range | 3AC 380V-480V | Voltage range | 380V~480V |
Power | Max. 36.2kW | Power | Max. 36.2 kW | |
1P system | ||||
Charge current (1P) | Rated | 2800A | Rated | 3756A |
Maximum | 3200A | Maximum | 4130A | |
Discharge current (0.5P) | Rated | 2800A | Rated | 3756A |
Discharging Current(0.5 P) | Rated | 2800A | Rated | 3746A |
Maximum | 3200A | Maximum | 4130A | |
Charge power (1P) | Rated | 3727.36kW | Rated | 5000kW |
Auxiliary power supply (1P) | Voltage range | 3AC 380V~480V | Voltage range | 3AC 380V~480V |
Power | Max. 56.2 kW | Power | Max. 56.2 kW | |
Working temperature | Charge | -25~55℃ | Charge | -25~55℃ |
Discharge | -25~55℃ | Discharge | -25~55℃ | |
Environmental conditions | Storage temperature | -40~60℃ | Storage temperature | -40~60℃ |
Altitude | ≤4000m | Altitude | ≤4000m | |
General parameters | Dimensions | 2896(H)*2462(W)*6058(D) | Dimensions | 2896(H)*2462(W)*6058(D) |
Weight | ~35T | Weight | ~45T | |
IP protection level | IP55 | IP protection level | IP55 | |
Cooling mode | Liquid cooling | Cooling mode | Liquid cooling | |
Communication protocol | CAN, RS485, TCP/IP | Communication protocol | CAN, RS485, TCP/IP | |
Power connection | Cable terminal block：6 x M12 | Power connection | Cable terminal block：6 x M12 | |
Communication connection | Quick insertion and removal | Communication connection | Quick insertion and removal | |
Auxiliary power supply connection | terminal | Auxiliary power supply connection | terminal | |
Coolant | 50% ethylene glycol aqueous solution | Coolant | 50% ethylene glycol aqueous solution | |
Certification standards | Cell | UN38.3/UL1973/IEC62619/UL9540A | Cell | UN38.3/UL1973/IEC62619/UL9540A |
Battery rack | UL1973/UL9540A | Battery rack | UL1973/UL9540A | |
Dc container energy storage

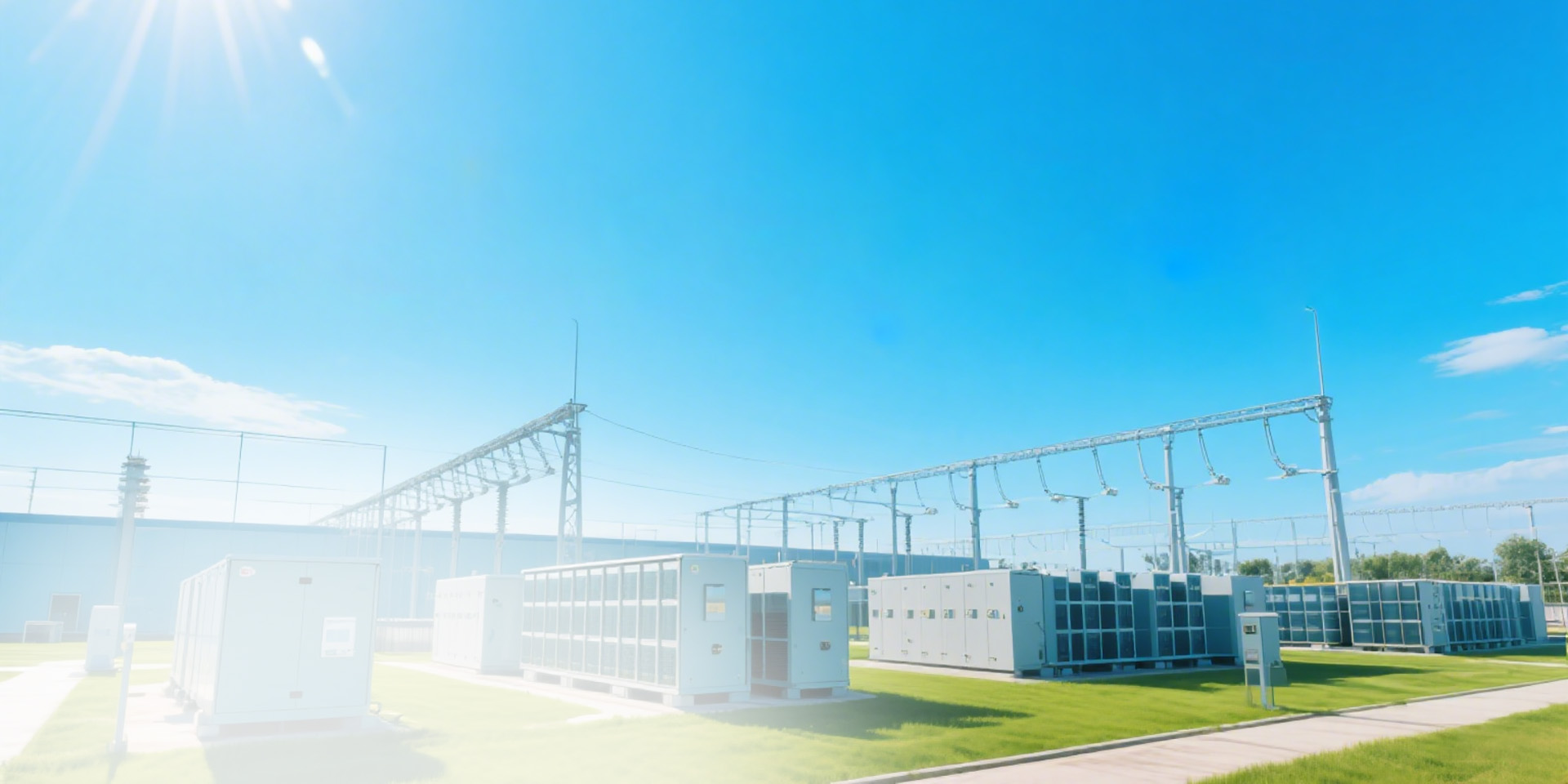

Liquid cooled energy storage battery container is an integrated high energy density system Consisting of a battery rack system and Battery tubes The system consists of a building management system (BMS), Fire extinguishing System (FSS), HVAC thermal management system, and Auxiliary power distribution system.
