Modle | ALL IN ONE-100/153.6kWh | ALL IN ONE-50/53.76Wh |
| Battery Type | Sodium ion (Na+) | Sodium ion (Na+) |
| Rated energy | 153.6kWh | 53.76kWh |
Nominal capacity | 200Ah | 70Ah |
Discharge voltage | 512~1024V | 512~1024V |
Charge voltage | 1040V | 1040V |
Operating temperature | -40℃ ~ 60℃ | |
Continuous charge current | 100A | 35A |
| Peak charge current | 200A | 70A |
Continuous discharge current | 100A | 50A |
Peak discharge current | 200A | 70A |
Rated discharge power | 75kW | 25kW |
Maximum discharge power | 100kW | 50kW |
IP protection level | IP54 | |
Extensibility | Support parallel connection (refer to the user manual） | |
| DOD | 100% | |
| Lnstallation method | Floor | |
Dimensions | 2301*2007*1175.8mm | 1373*1208*2007mm |
Weight | ≤2.1t | ≤1.1t |
Authentication | UN, CE | |
Communication protocol | CAN2.0 / RS485 | |
Rated voltage | 768V | |
Warranty | 5 Year | |
Cycle life | >5000 | |

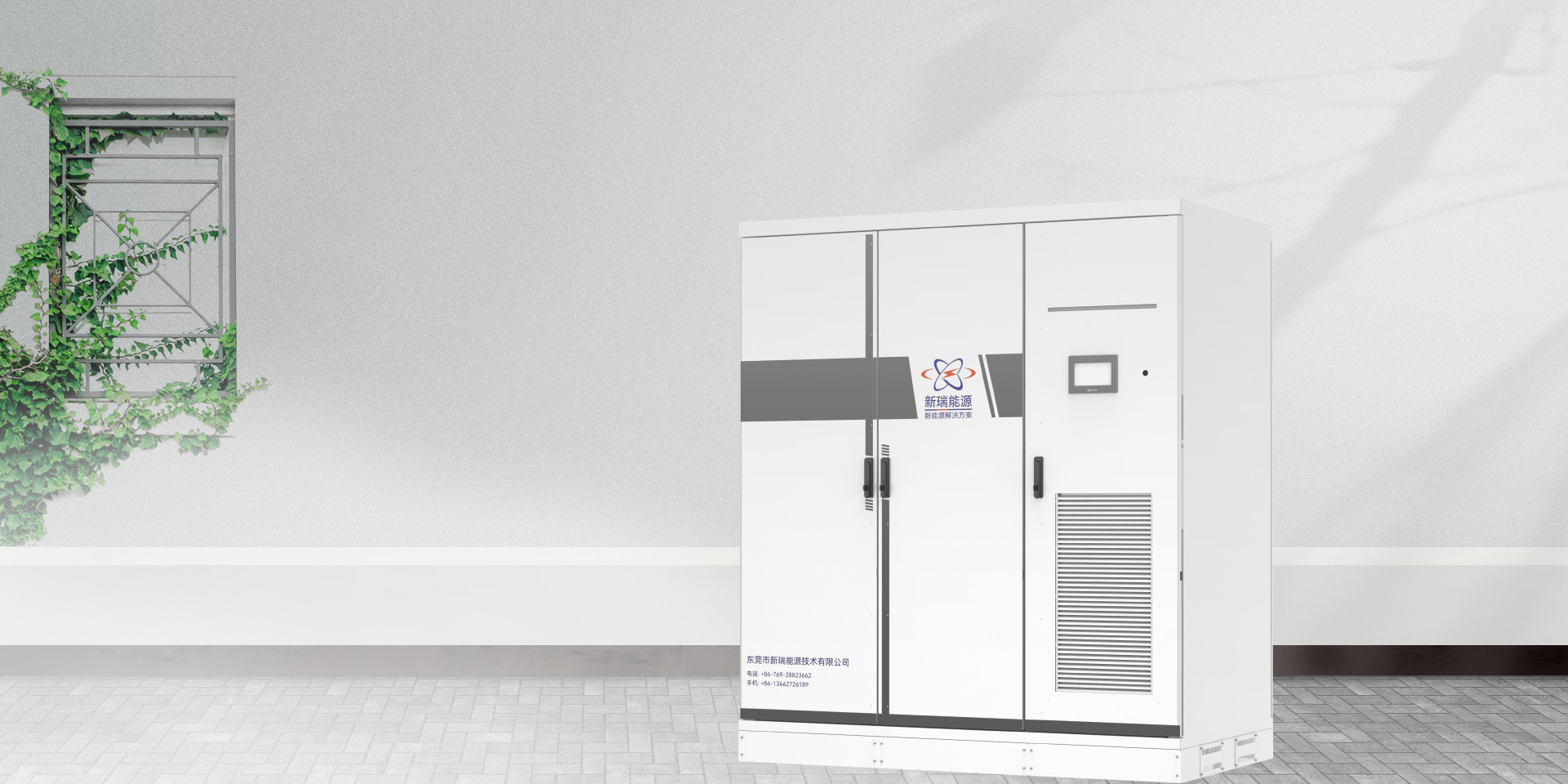

Commercial storage systems
Certified for safety performance such as UN38.3,CE, IEC62619 etc.
