Modle | CES-313-L | CES-418-L |
DC data | ||
Battery cells | 314Ah | 314Ah |
Cell cycle life | ≥8000 Cycles | ≥8000 Cycles |
Number of batteries inseries and parallel | 1P552S*6 | 1P552S*8 |
Rated energy | 313kWh | 418kWh |
Rated voltag | 998.4VDC | 1331.2VDC |
Voltage range | 858-1123.2VDC | 1144-1497.6VDC |
Exchange data | ||
Rated power | 125KW | 215KW |
Rated voltage | 380V | 400V |
Maximum current | 200A | 360A |
Overload capacity | 300% 3S | 150% 3S |
Type of power grid | 3L+N+PE | 3L+N+PE |
Current distortion rate | S3% | S3% |
Common data | ||
Dimensions | 1335.7mm(H)*951mm(W)*2504.2mm(D) | 1380mm(H)*1450mm(W)*2504.2mm(D) |
Weight | ≤3T | ≤4.5T |
IP protection level | IP54 | IP54 |
Range of working temperature | -20℃~55℃ | -20℃~55℃ |
Warranty time | 5 years | 5 years |
Heat management | Liquid cooling (50% ethylene glycol water solution) | |
Fire fighting system | Perfluoroethanol + Pack Machine | |

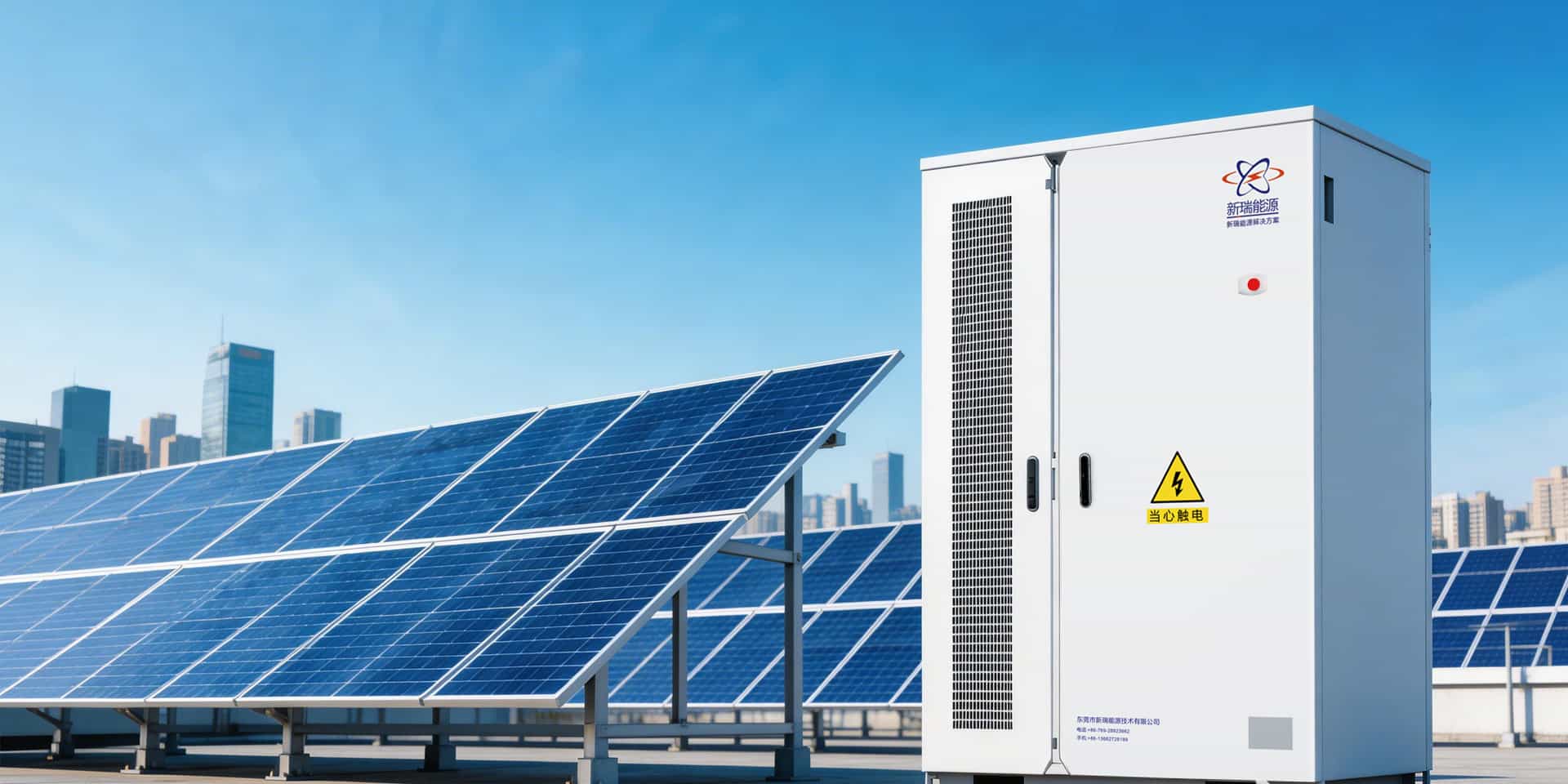

Grid-forming energy storage system
We can customize the commercial ESS range from 500kWh to 2000kWh.
CES-313-L / CES-418-L Integrated design and highly integrated modular design have different optional components.
High degree of modularity, simple structure, easy installation and maintenance.
Facilitate transportation and installation, reduce infrastructure construction costs, and shorten construction time.
Core functions: black start capability, synthetic iner tia, multi-scenario adaptive frequency/voltage regul ation, reliable support in weak grid/no-grid conditions
