Power Porter 10.0

10kW | 15.46kWh

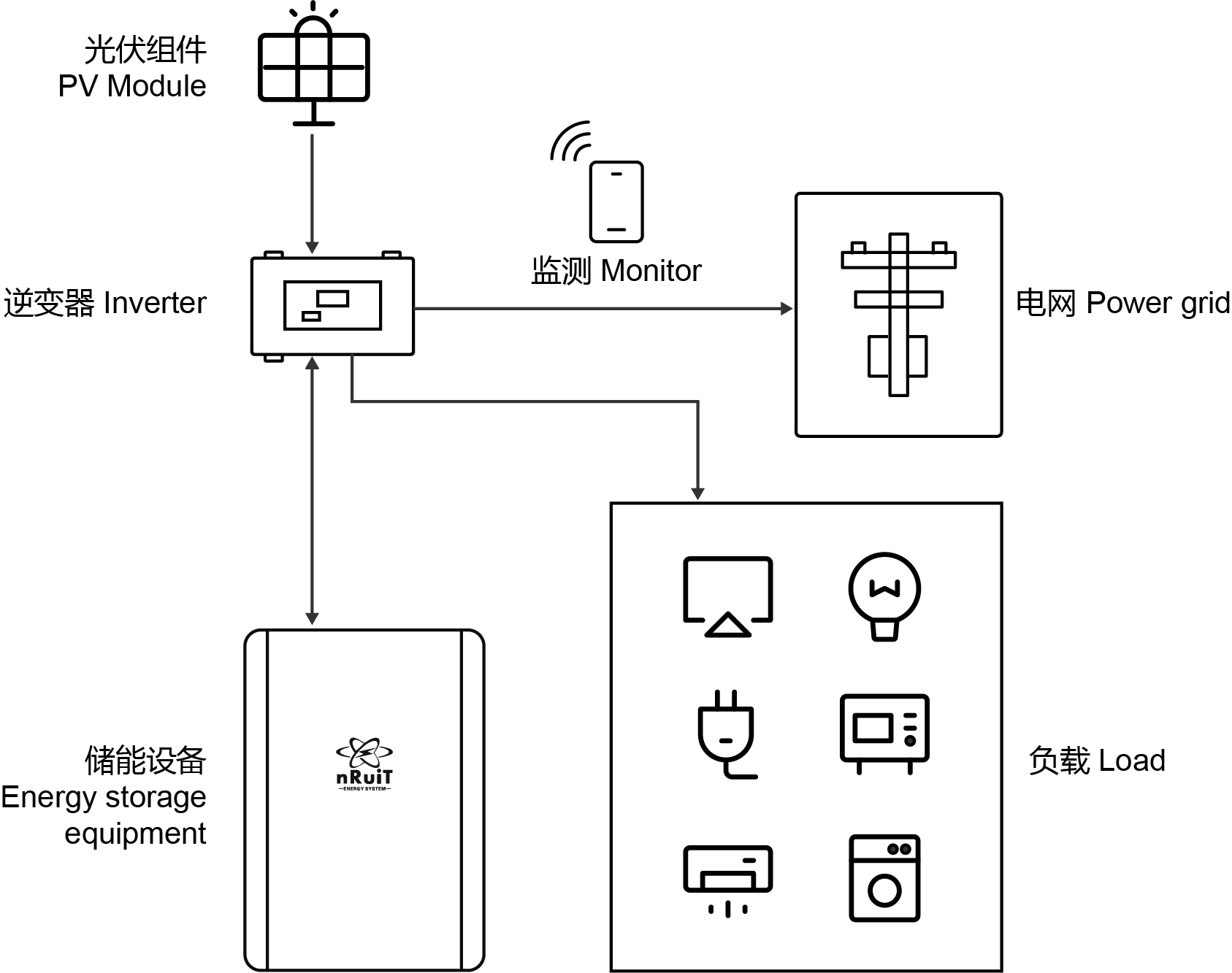

Powerporter is a lithium-ion battery that can store electrical energy and outputs DC current. Powerporter only maintains electrical connection with the inverter. The electrical energy generated by the PV is converted by the inverter Dc to DC and stored in the connected Powerporter. When Powerporter is needed, Powerporter’s electrical energy is converted by the inverter DC to AC and transmitted to the home grid to provide power for household appliances.

(Note: The actual Residential ESS may also include electrical equipment such as distribution boxes and metering meters)

Video

Datenblatt

Benutzerhandbuch

Treten Sie dem Elite-Partnernetzwerk von Xinrex bei.

MERKMALE

Use lithium iron phosphate battery cells

Can be wall mounted or floor mounted

High battery integration and lighter volume

Metal shell

compact in size

Faster charge and discharge without memory effect

SPEZIFIKATION

Battery data
Rated voltage	51.2V
Rated energy	10.2kWh
Nominal capacity	202Ah
Discharge voltage	45~54V
Charge voltage	51.5V~54V
Operating temperature	0℃ ~ 45℃ (Charge) -20℃ ~ 45℃ (Discharge)
Continuous charge current	100A
Peak charge current	125A
Continuous discharge current	100A
Peak discharge current	125A
Rated discharge power	5000W
Communication protocol	CAN2.0 / RS485

General data
IP protection level	IP31
Extensibility	Support parallel connection (refer to the user manual)
DOD	90%
Lnstallation method	Wall mounted or floor standing
Dimension	830460200mm
Weight	93kg
Authentication	UN, CE
Compatible inverter	GoodWe/Deye/Megarevo/Growatt/Lux Power/TBB/Victron/Srne/Must/Senergy/Voltronic /Aotai/Sofar/Sma, etc.

UN38.3、CE、IEC62619

* When the temperature is below 0 ℃ or above 45℃, the performance will be limited.
