Model | HV U10 | HV U15 | HV U20 | HV U25 | HVU30 |
Number of modules | 2 | 3 | 4 | 5 | 6 |
Rated voltage | 204.8V | 307.2V | 409.6V | 512.0V | 614.4V |
Nominal battery energy | 10.6kWh | 15.9kWh | 21.2kWh | 26.6kWh | 31.9kWh |
Maximum continuous discharge power | 5kW | 8kW | 12kW | 16kW | 20kW |
Maximum continuous charge power | 5kW | 8kW | 12kW | 16kW | 20kW |
Dimension | Define based on cabinet size | ||||
Weight | 103kg | 149kg | 195kg | 241kg | 287kg |
Operating temperature | 0℃ ~ 50℃（charge） -20℃ ~ 50℃（discharge） | ||||
Provide warranty documents | Yes | ||||
IP protection level | IP21 | ||||
Colour | Black | ||||
Warn | Over charge / Over discharge / Over current / Overheating / Short circuit | ||||

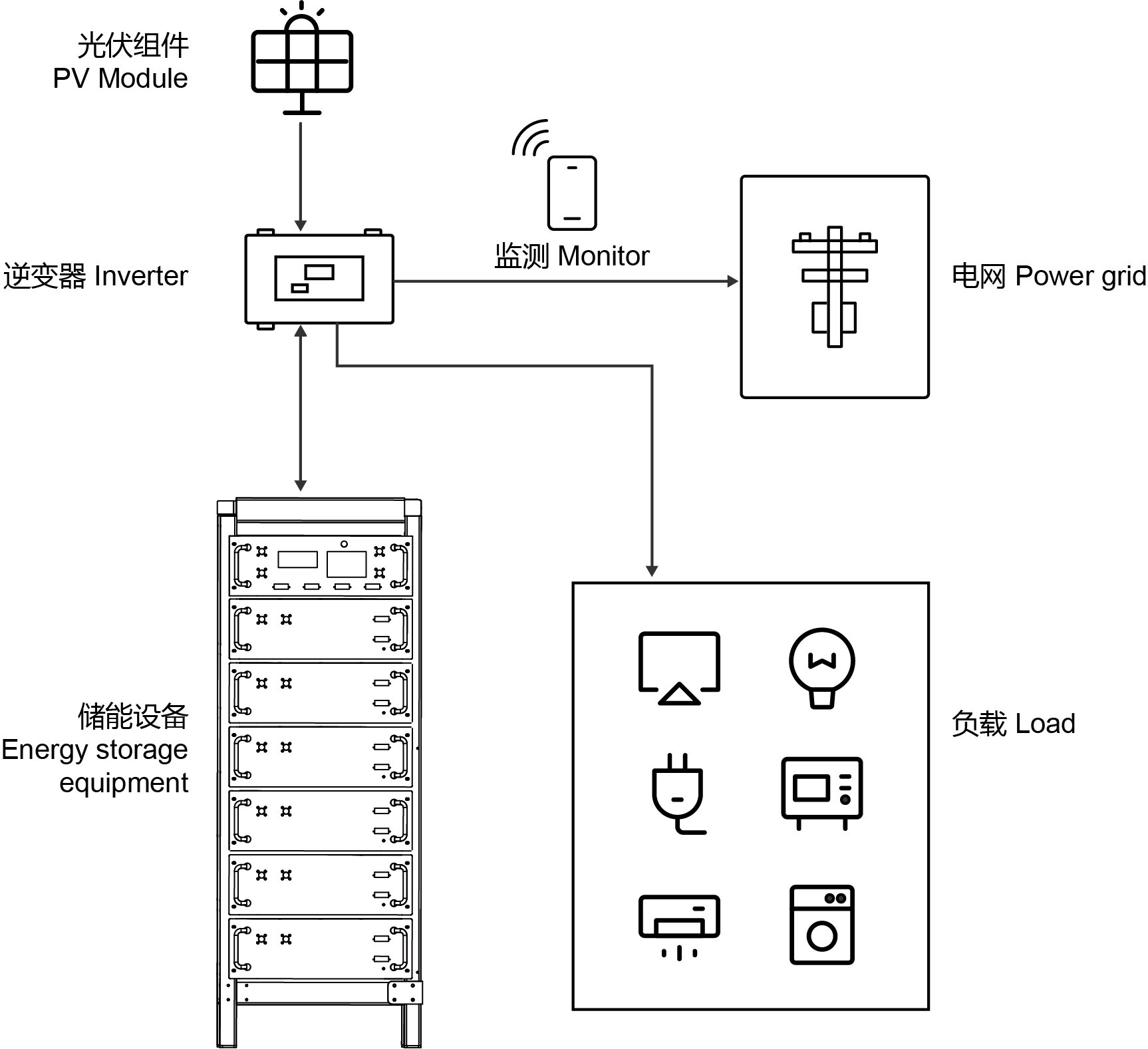

Advantage | Can be used for off grid and hybrid settings, compact design, modular expansion | ||||
Battery module type | High voltage | ||||
Module connection mode | Series connection | ||||
Authentication | UN CE IEC | ||||
Compatible inverter | Deye / Megarevo / Growatt / Keyo / Aiswei, etc. | ||||
