Modle | CES-200kWh | CES-225kWh |
Battery Cabinet Parameters | ||
Cell capacity | 280Ah | 314Ah |
Nominal Voltage | 716.8V | 358.4V |
Strings And Parallels | 1P16S*14 | 1P16S*14 |
Voltage Range | 627.2V~817.6V | 627.2V~817.6V |
Rated Energy | 200.704kWh | 225.07kWh |
Max.Charging/Discharging Current | 0.5C | 0.5C |
Dimension(W*D*H） | 1200*980*2200mm | 1200*980*2200mm |
Cycle Life | ≥6000 times | ≥10000 times |
Cooling Method | Air Cooling | Air Cooling |
Cabinet Weight | ≤1.8T | ≤2.0T |
Battery Box Parameters | ||
Cell Type | LFP | |
Rated Voltage | 51.2V | |
Cell Capacity | 280Ah 314Ah | |
Series And Parallel Numbers Of Box Battery Modules | 1P16S | |
Voltage Range | 44.8V~58.4V | |
Dimension(W*D*H） | 480x700x230mm | |
Cycle Life | ≥6000 times ≥10000 times | |
Weight | 108kg 120kg | |

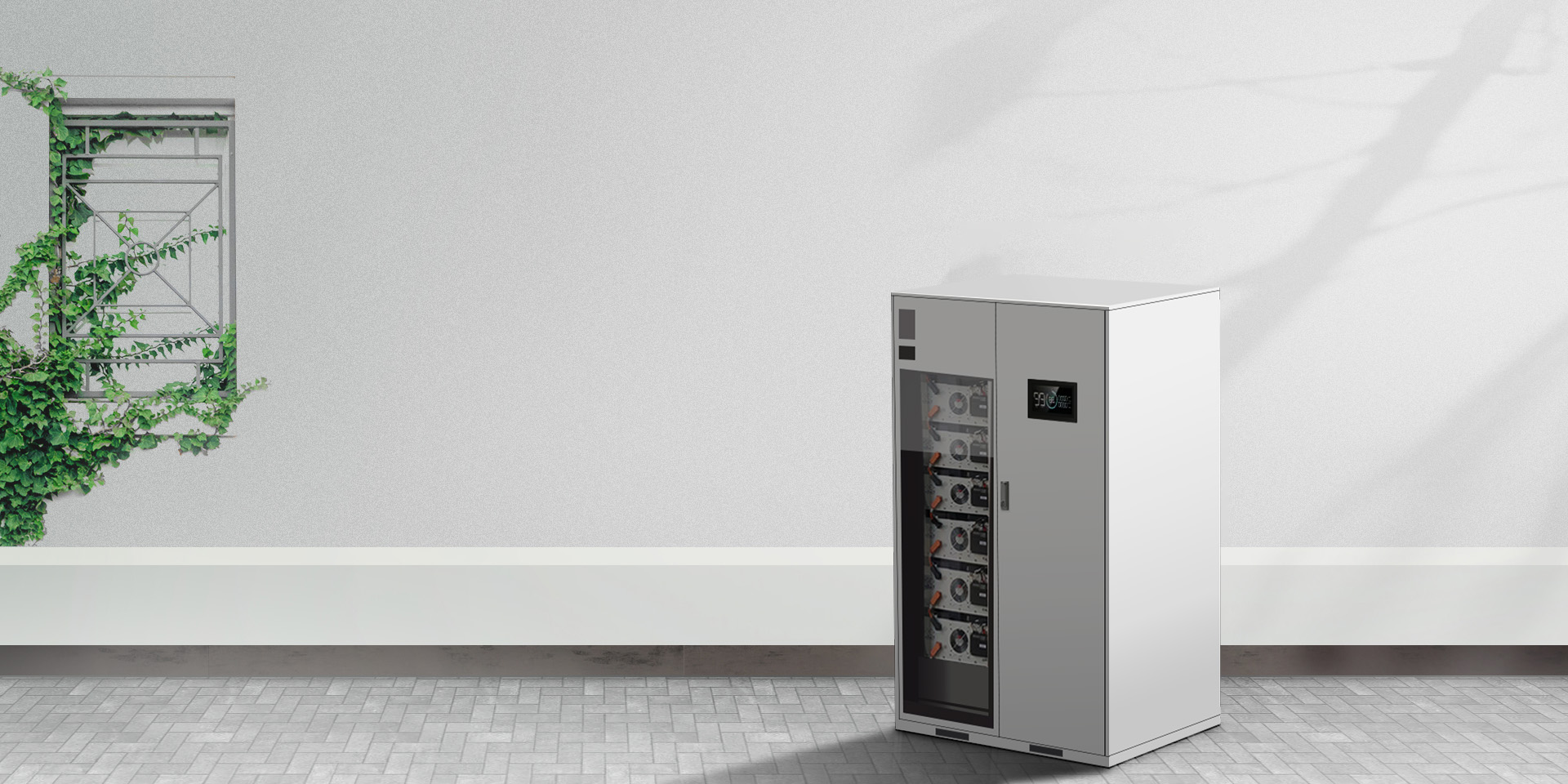

200~225kWHh Outdoor Split Air-Cooled Cabinet
An integrated storage system developed to meet the needs of the large storage market. Integrated battery cabinet, BMS, monitoring system, dedicated fire extinguishing system, HVAC, PCS and EMS. Suitable for thermal power plants, wind farms, solar farms or islands, schools, research institutes, factories, load centers, etc.
