| Modle | W-CES-EnerOne | W-CES-EnerOne | W-CES-EnerOne |
| Dc side parameter | |||
| Cell capacity | 280Ah | 314Ah | 280Ah |
| Rated Energy | 232.960kWh | 261.24kWh | 372.7kWh |
| Configuration | 1P52S*5 | 1P52S*5 | 1P52S*8 |
| Rated Voltage | 832VDC | 832VDC | 1131.2VDC |
| Voitage Range | 728~936VDC | 728~936VDC | 1164.8~1497.6VDC |
| AC side parameter | |||
| Rated Charging Current | 70A | 78A | / |
| Max Charging Current | 140A | 157A | / |
| Rated Discharging Current | 70A | 78A | / |
| Rated Discharging Current | 140A | 157A | / |
Charging Working | -30~55℃ | -30~55℃ | -30~55℃ |
| Discharging Working Environment Temperature | -30~55℃ | -30~55℃ | -30~55℃ |
| Operating Environment Temperature | -30~55℃ | -30~55℃ | -30~55℃ |
| General parameter | |||
Size | 2099.9mm(H)*1300mm(W)*1451mm(D) | 2099.9mm(H)*1300mm(W)*1451mm(D) | 2280mm(H)*1300mm(W)*1300mm(D) |
Weight | ≤2T | ≤2T | ≤3T |
IP Rating | IP55 | IP55 | IP56 |
Cooling Mode | ;iquid Cooling | Liquid Cooling | Liquid Cooling |
Coolant | 50% glycol solution | 50% glycol solution | 50% glycol solution |
Refrigeration Capacity | 8.0kw | 8.0kw | 8.0kw |
Cooling Input Power | 4.55kw | 4.55kw | 4.55kw |
Communication Interface | CAN | CAN | CAN |
| Fire Rating | Aerosol + active early warning | Aerosol + active early warning | Aerosol + active early warning |

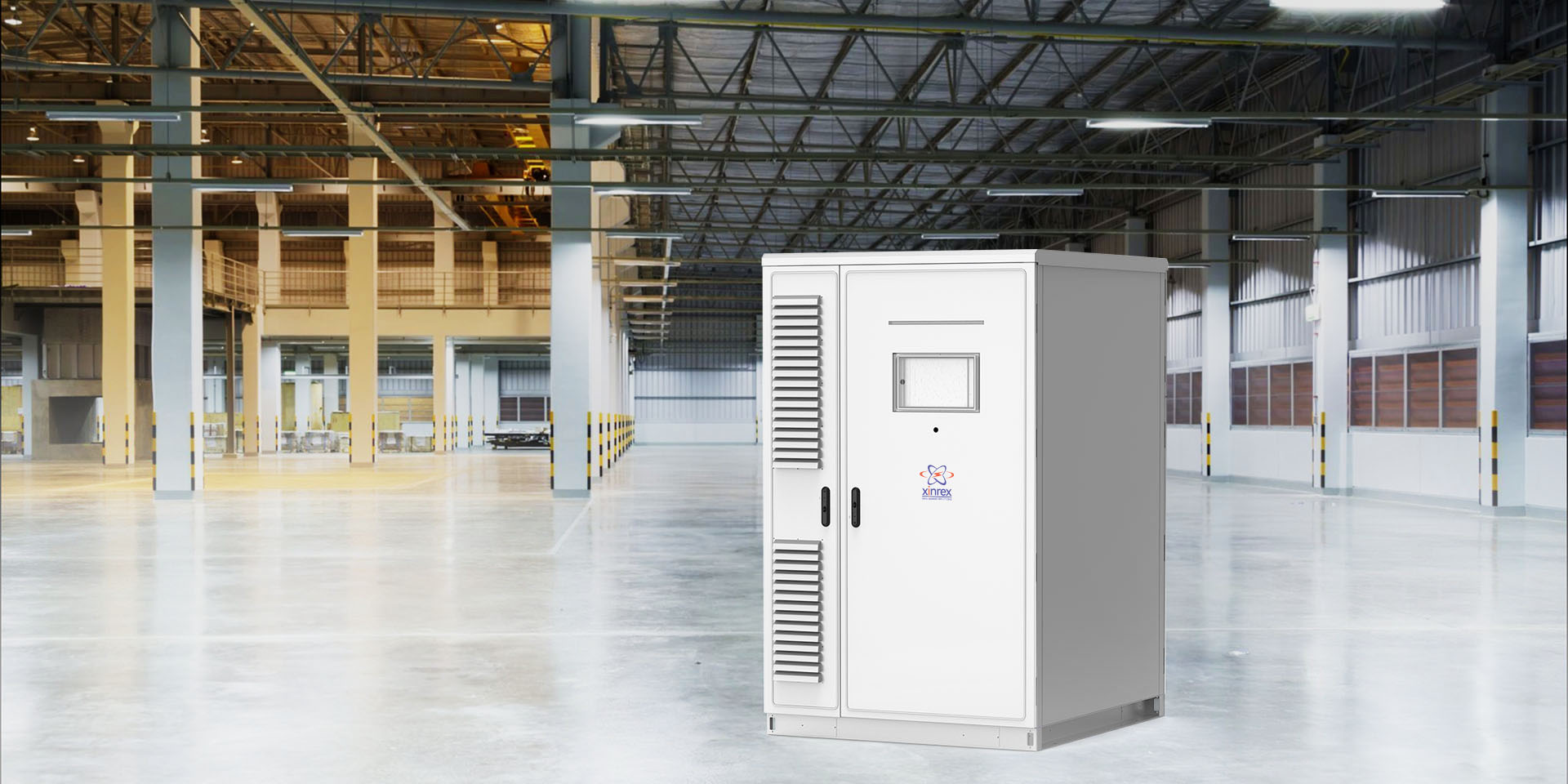

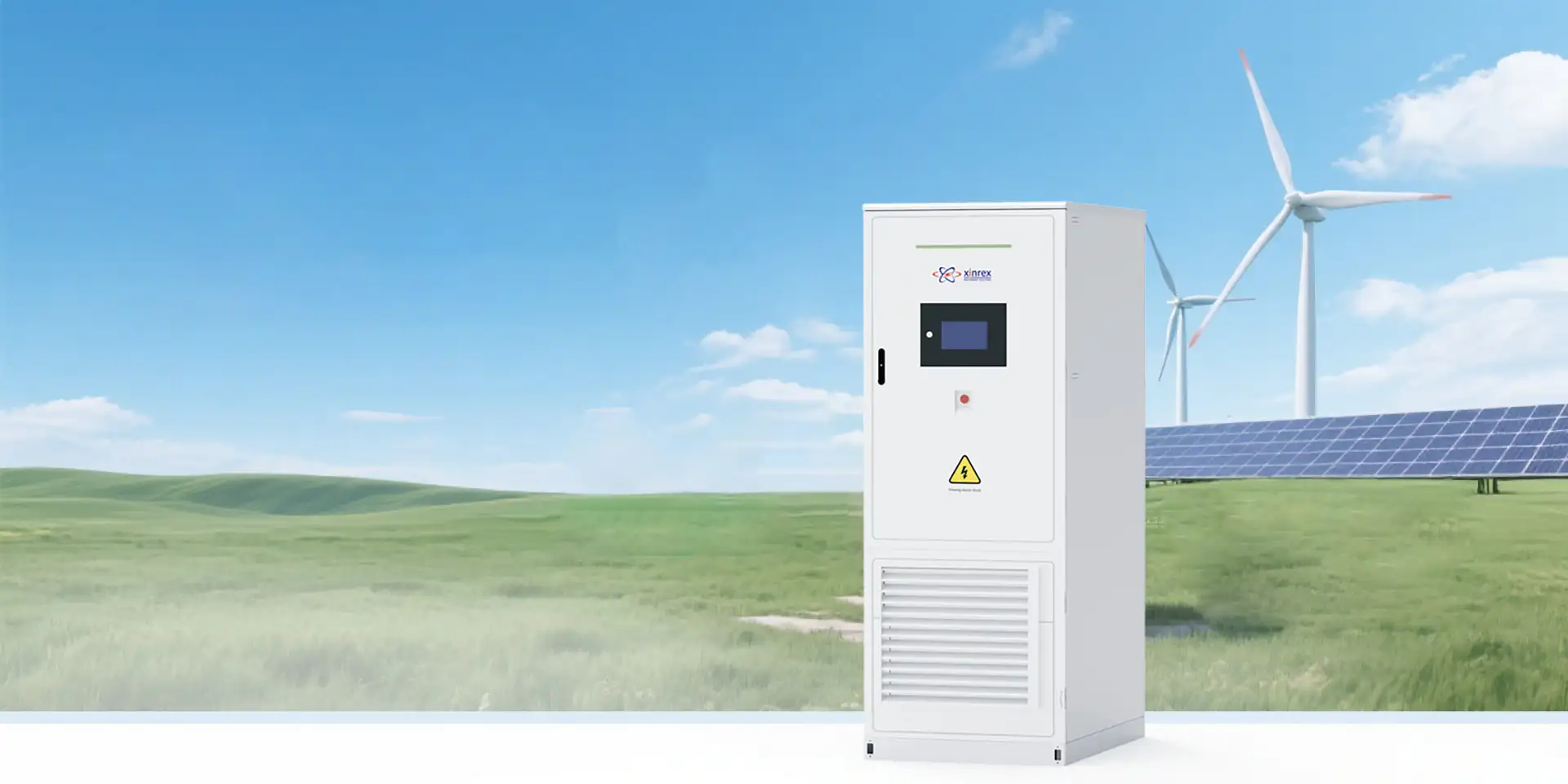

Outdoor liquid cooled cabinet
The battery rack consists of 8 battery modules and a control box, chiller, fire, etc. The cell is the most basic battery unit. The BMS consists of the CSC and the SBMU. The BMS collects status data from batteries, modules, and racks and exchanges information with other components.
