MERKMALE

Compatible with different battery brands. 150~750Vdc. Grid-tied and Off-grid. 480Vac 3P4W & 240Vac 2P. Optional PV input. Optional backup module.

Compatible with different battery brands. 150~750Vdc. Grid-tied and Off-grid. 480Vac 3P4W & 240Vac 2P. Optional PV input. Optional backup module.

Global grid certified & listed PCS. Compliance with global safety standards.

Global grid certified & listed PCS. Compliance with global safety standards.

All-in-one design and highly integrated. Modular design with different optional parts

All-in-one design and highly integrated. Modular design with different optional parts

NEMA 3R / IP54 rated. Parallel installation side-by-side or back-to-back.

NEMA 3R / IP54 rated. Parallel installation side-by-side or back-to-back.

SPEZIFIKATION


Modle

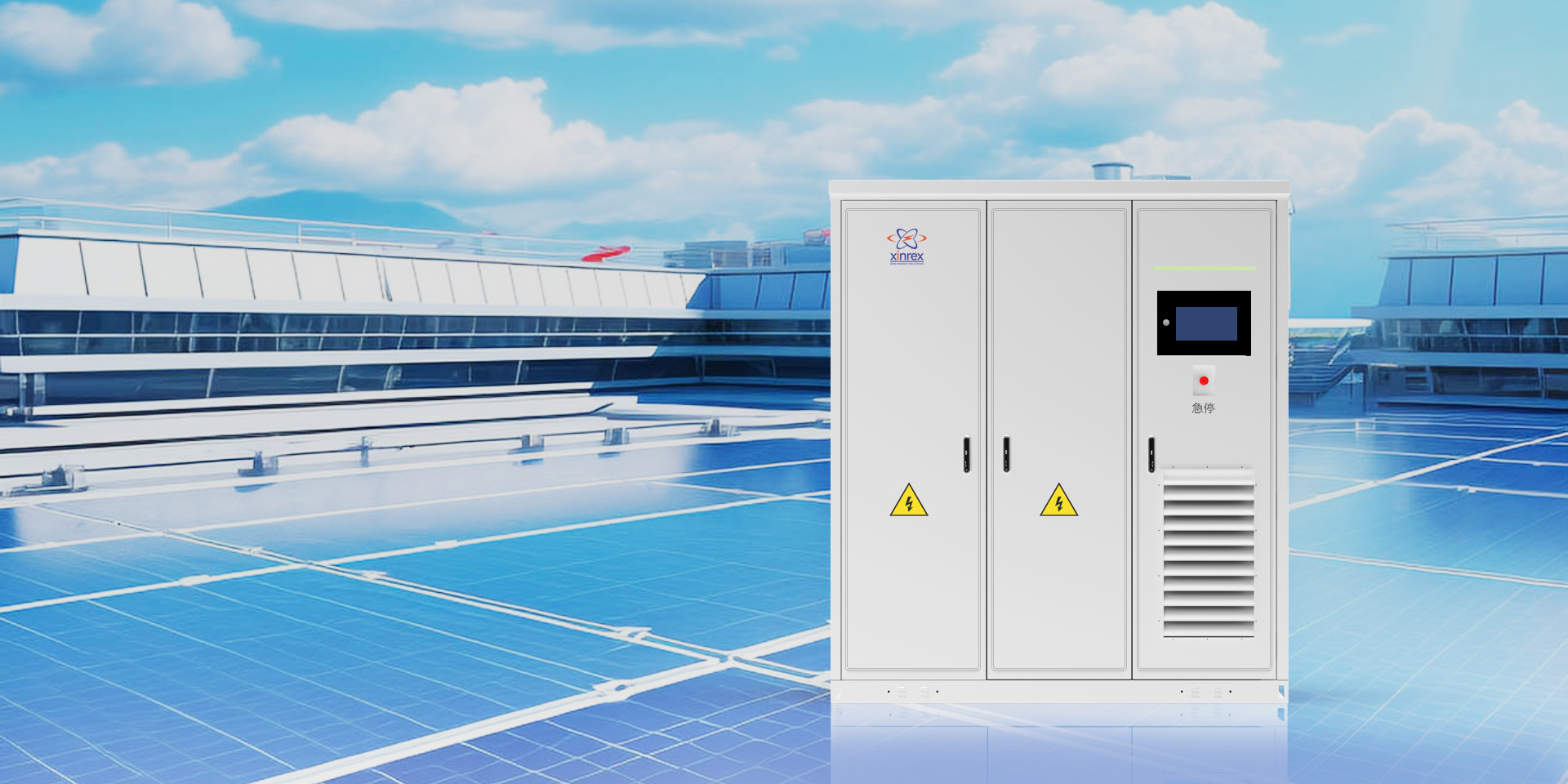

ALL IN ONE-105/215KWH

ALL IN ONE-125/257KWH
DC Data

Cell TypeLFPLFP

Cell Cycle Life

70% Retention with 800070% Retention with 10000

Cell

3.2V/280Ah

3.2V/314Ah

Configuration

1P240S

1P256S

Rated Power

215.04KWh257.23KWh

Rated Voltage

768V

819.2V
Voltage Range672~876V716.8~934.4V

BMS Communication Port

RS485, Ethernet

RS485, Ethernet

AC Data

Rated Power

105kW125kW

Rated Voltage

400V

400V

Rated Current

144A174A

Output THDi

<3%

<3%
AC PF
0.1~1 Lead or lag (configurable)0.1~1 Lead or lag (configurable)
AC Outputthree-phase four-wire+PEthree-phase four-wire+PE

System Parameter

IP Rating

IP54

Dimensions(H*W*D)

2301mm(H)*2007mm(W)*1175.8mm(D)

Noise

≥60dB

Fire Fighting System

Aerosols, aerogels

Cooling Method

cooling

Optional Components

Perfluoroacetone (alternative aerosol), DCDC connector, UPS

Weight≤2.3T≤2.8T
